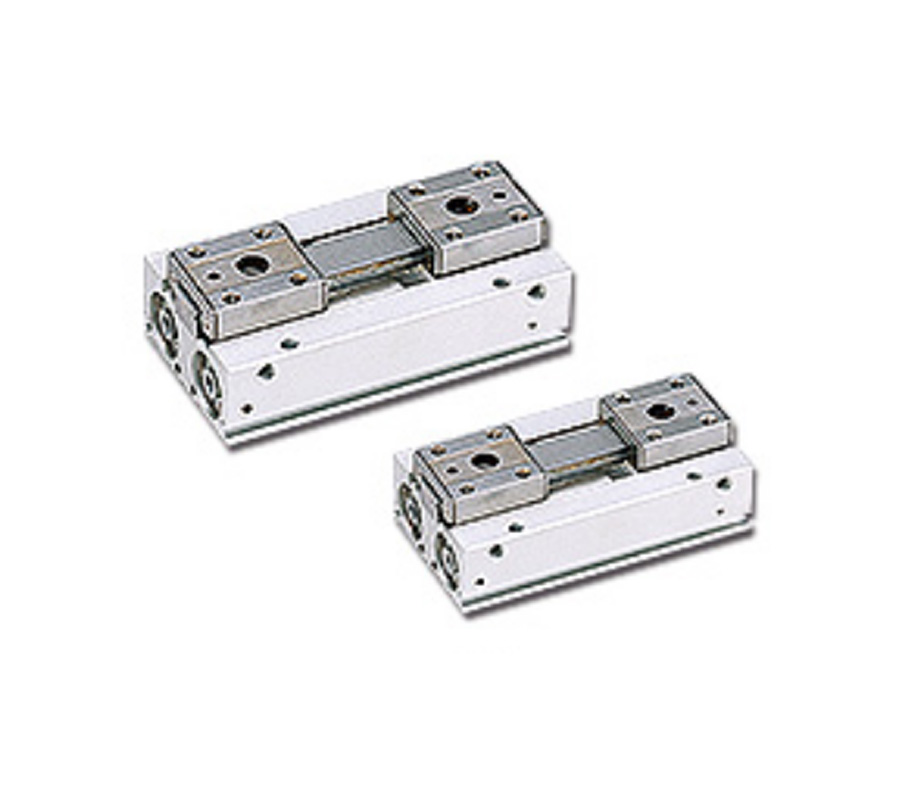

Product features:
Low height:
Flat appearance, overall height lower than other slide type mechanical clamps.
Synchronization action:
The pistons on both sides are actuated synchronously, and the clamping force is greater than other mechanical clamps with the same cylinder diameter.
Automatable control:
It contains an inductive magnet that can be controlled with sensors.
Detailed specifications:
| model | HDF | Cylinder diameter ∅ mm | 12/16/20 |
| Actuation type | Complex motion | Opening and closing dimensions | 12、24、48mm/16、32、64mm/20、40、80mm |
| Operating pressure range kgf/c ㎡ | 1.5~7 |
