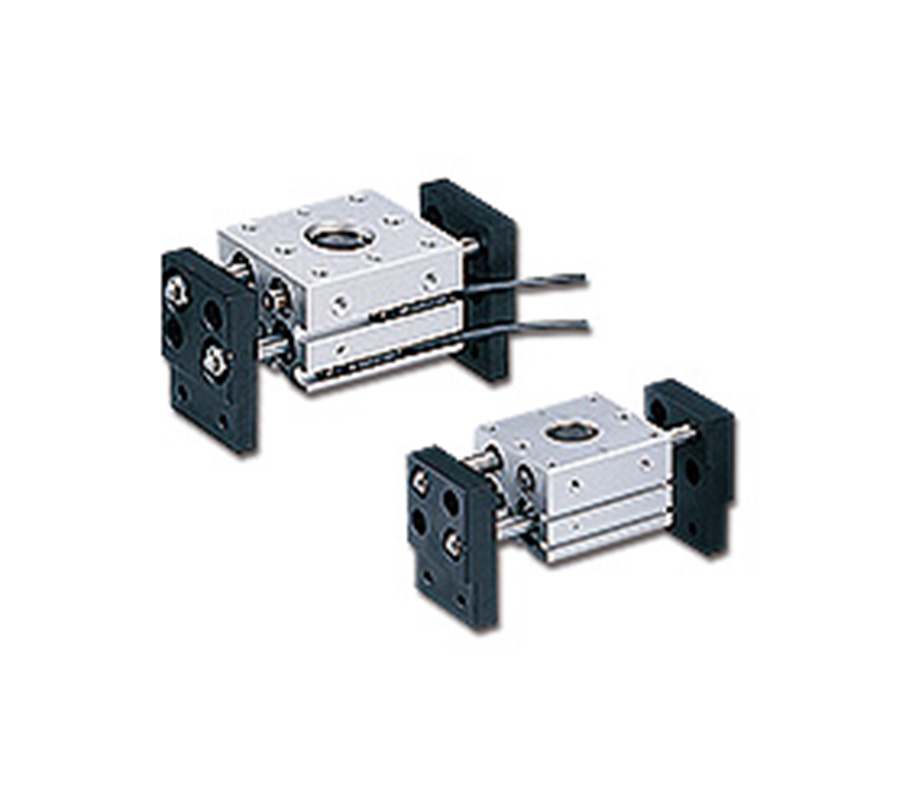

Product features:
Parallel opening and closing:
With a large opening and closing stroke, there are three strokes available for each cylinder diameter, suitable for gripping large objects.
Synchronization action:
The pistons on both sides are actuated synchronously, and the clamping force is greater than other mechanical clamps with the same cylinder diameter.
Automatable control:
It contains an inductive magnet that can be controlled with sensors.
Detailed specifications:
|
model |
HDT | Cylinder diameter ∅ mm | 10/16/20/25/32/40 |
|
Actuation type
|
Complex motion | Opening and closing dimensions | 20、40、60mm/30、60、80mm/40-80、100mm/50、100、120mm/70、120、160mm/100、160、200mm |
| Operating pressure range kgf/c ㎡ | 1.5~7 |
