Mobile phone finished product testing line

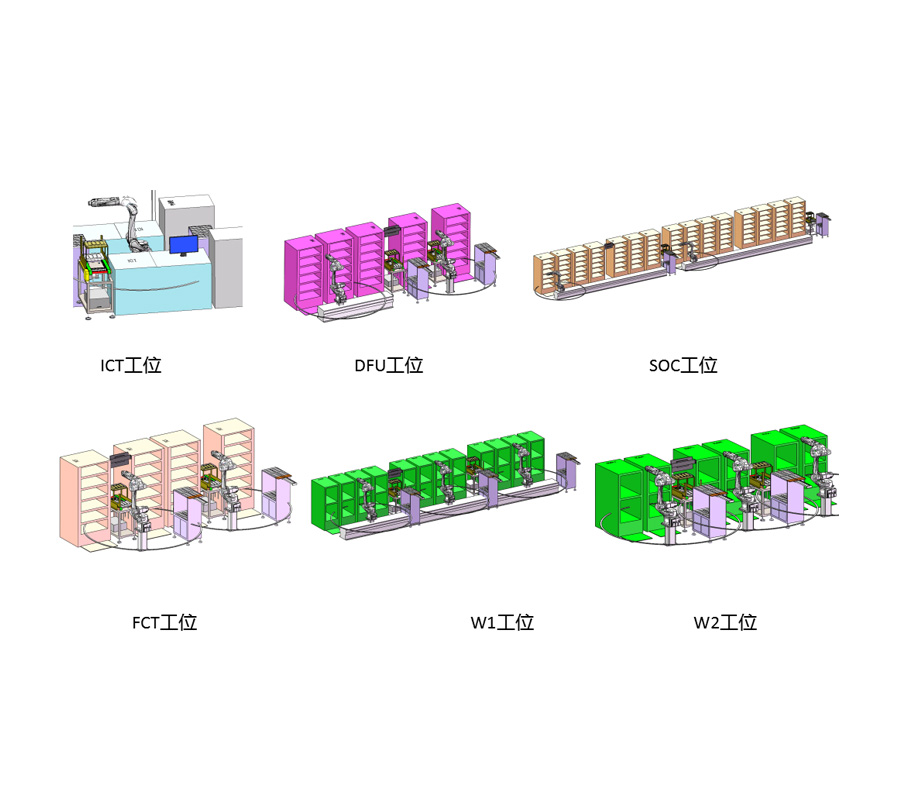

1.线体采用6台上位机控制,每工位一台上位机

2.显示器悬挂在设备缓存架上方

3.机械手控制器放置在设备缓存架机箱中

  • Product details
1.线体采用6台上位机控制,每工位一台上位机
2.显示器悬挂在设备缓存架上方
3.机械手控制器放置在设备缓存架机箱中

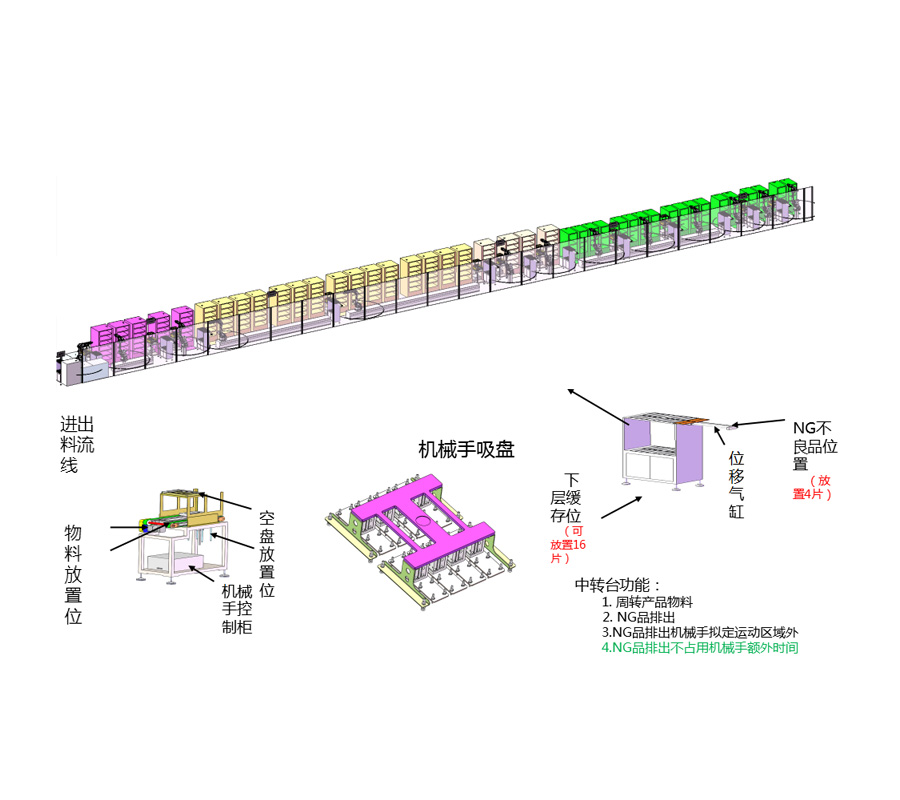

线体宽度:2500mm
长度:49525mm

整线采用单边设备布局

共采用13台六轴机械手

中转台合计13台

缓存架11台( Tray 盘自动换盘式)

地轨6条
DFU地轨长度:2500mm一条
SOC地轨长度:7300mm与8500mm共二条
W1地轨长度:2500mm三条
